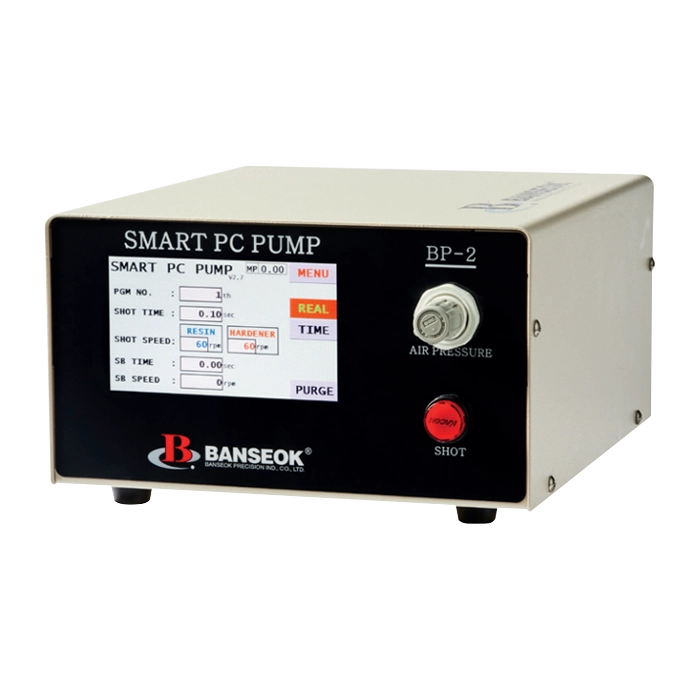

The BP-2 is a high-performance controller designed to regulate the motor connected to the rotor of a progressive cavity pump, providing precise motor speed control up to 120 rpm. This ensures consistent and accurate fluid flow, essential for high-precision applications involving low-viscosity fluids.
Versatile Operation Modes for Enhanced Control
The BP-2 supports both shot and suck-back functions, enabling precise control over fluid release and cut-off. Its real-time mode offers both ON/OFF control and time-setting control, providing versatile operation for a variety of precision fluid dispensing needs.
Product specifications:
| Model | RS485(Male), D-SUB 9 pin |
| Input/Output Signal | Shot, Channel No, User Optional / End Signal, Error Signal |
| Air IN-Port | 6Ø Air Hose |
| Air OUT-Port | Auto Coupler |
| Pressure Regulator | 0~7kgf/cm2 |
| Operation Mode | Time / Real |
| Display | 4.3″ TFT LCD, Touch Panel |
| Motor | DC Servo Motor |
| External Control | Input 8 CH, Output 8 CH |
| Channel Memory | Internal: 200 CH, External: 16 CH |
| Consumption Rating | AC 80~220C(Pre Volt), 50/60Hz |
| Operating Temperature | 10~40°C |
| Optional System | Dispensing Pressure Check (for 2 Parts only) |
| Dimension & Weight | 220(W) x 224(D) x 120(H)mm / 1.8kg |
Key Features and Benefits:
- Precise Motor Control: Regulates motor speed up to 120 rpm for consistent and accurate fluid flow. Supports shot and suck-back for controlled dispensing.
- Real-Time Mode: Offers ON/OFF and time-setting control for enhanced flexibility and precision in small fluid dispensing.
- Smooth Fluid Dispensing: Minimizes tube wear and eliminates pulsation for consistent and reliable fluid flow, ensuring high dispensing accuracy.
- Advanced Liquid Control: Equipped with liquid suction, forward/reverse rotation, and automatic timer functions for comprehensive control.
- Low-Viscosity Fluid Compatible: Ideal for dispensing low-viscosity products like instant adhesives, inks, and other materials.
- Direct Container Dispensing: Dispense directly from the original fluid container without compressor air, simplifying the process and ensuring clean dispensing.
- Adjustable Discharge Amount: Fine-tune dispensing volume with manual or automatic timer functions for precise quantity control.
