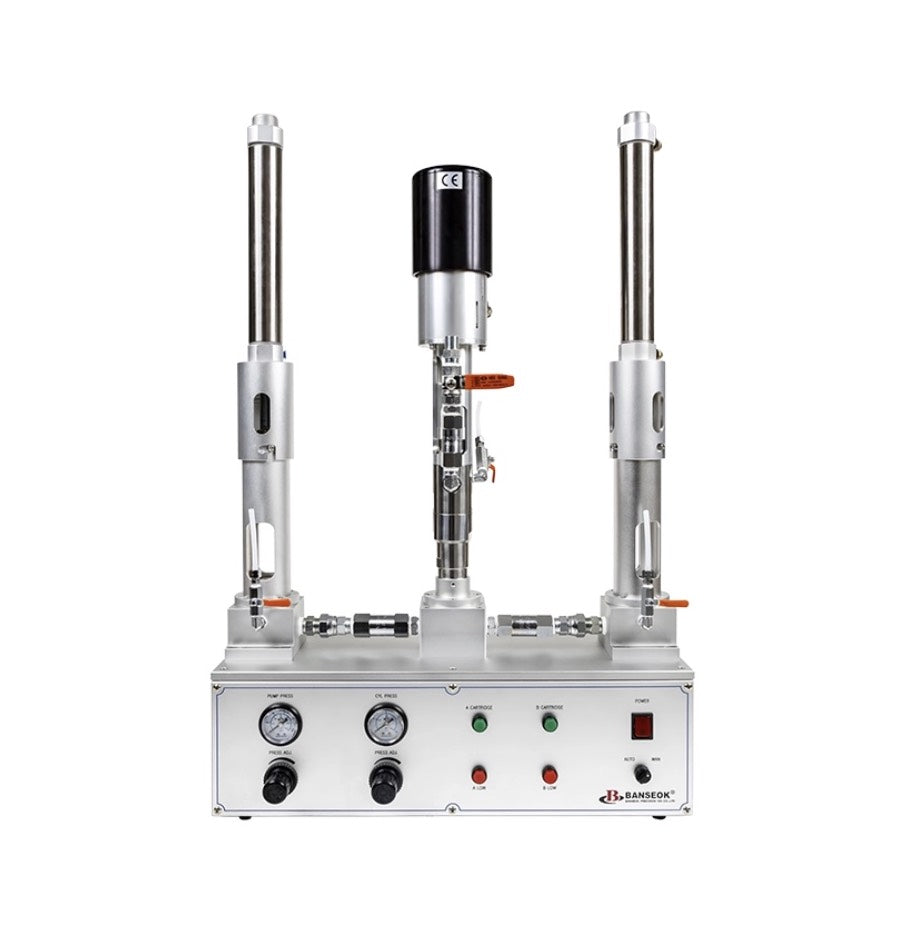

BSP-330D Cartridge Pump

The BSP-330D is a specialized dual-cylinder pressure pump engineered for high-demand industrial environments. This system is specifically designed to handle cartridge-type fluids with extreme viscosities—ranging up to 600,000 cps—while ensuring a completely air-free and lossless dispensing process.

The defining advantage of the BSP-330D is its continuous-operation architecture, which utilizes an automated switching mechanism between dual cartridges to eliminate production downtime.

Key Technical Features & Operational Advantages

• Dual-Cylinder Continuous Flow: The integrated dual-cartridge system allows for seamless fluid transfer. As one cartridge nears depletion, the system automatically transitions to the secondary cylinder, ensuring an uninterrupted production cycle.

• Air-Free Precision: Engineered to maintain vacuum-sealed fluid integrity, this pump prevents bubble formation and material oxidation, ensuring high-reliability dispensing for sensitive electronic or automotive components.

• Extreme Viscosity Management: Robust mechanical pressure allows for the efficient processing of high-viscosity silicones, RTVs, and thermal pastes that would stall conventional dispensing equipment.

• Automation-Ready Integration: With a streamlined interface and compact footprint, the BSP-330D is optimized for integration into multi-axis robotic workcells and high-speed automated assembly lines.

• Zero-Waste Material Preservation: The pressurized delivery system ensures near-total evacuation of the cartridges, significantly reducing expensive material loss and lowering the total cost of ownership.



  Product specifications

  Model	BSP-330D
  Air pressure	Min. 2kgf/cm²
  Air consumption	80ml/min(max)
  Pump sending ratio	10:1, 20:1(For high pressure)
  Max. dispensing pressure	50kgf/cm2
  Min. dispensing pressure	0.005cc/shot
  Applied viscosity	10,000~600,000cps
  Applied container	300ml,310ml,330ml cartridge
  Power	AC220V 50/60Hz (110V:Option)



  Drawing
