DIN Rail (UV Intensity Monitor)

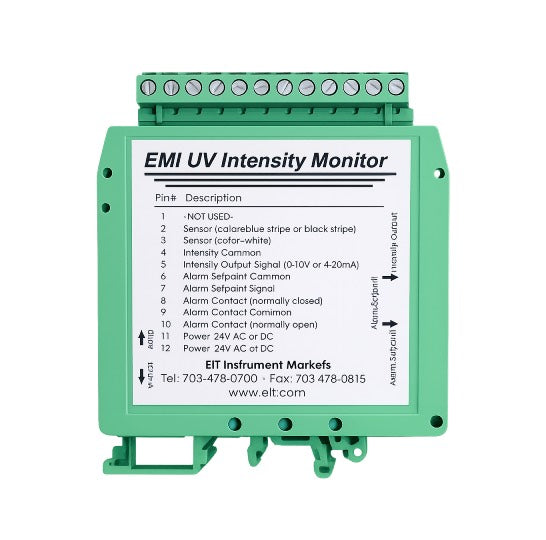

EIT 2.0™ DIN Rail UV Intensity Monitor — Continuous, Process‑Ready UV Lamp Monitoring

The EIT 2.0 DIN Rail UV Intensity Monitor is an industrial‑grade signal conditioning instrument engineered to provide continuous, real‑time relative UV intensity monitoring of a single ultraviolet source in automated manufacturing environments. When used in concert with an EIT Compact Sensor, this DIN rail‑mounted module delivers industry‑standard analog outputs and configurable alarm logic essential for reliable process control, preventive maintenance, and quality assurance in high‑performance UV curing systems.

Technical Authority & Key Performance Attributes

• Continuous Signal Conditioning: The Monitor accepts raw optical input from an EIT Compact Sensor and outputs a 0–10 V analog signal proportional to UV intensity, enabling seamless integration with PLCs, HMIs, and distributed control systems.

• Alarm and Relay Logic: User‑settable alarm points and relay contacts provide programmable thresholds that trigger process alerts or automated corrective actions when UV intensity falls below defined limits.

• DIN Rail Mount Convenience: The compact monitor module clips onto standard DIN rail hardware, allowing modular deployment in control panels, enclosures, or machine frames—facilitating scalable monitoring across multiple lamp banks.

• Robust, Industrial Construction: Designed for factory floors and continuous operation, the monitor supports 24 V AC/DC power and provides a consistent, conditioned output for sustained UV process oversight.

Engineered for Automated Process Control

• Real‑Time Process Visibility: By converting relative UV intensity to an analog signal, the DIN Rail Monitor enables real‑time feedback loops within automated UV curing and coating lines, helping maintain consistent energy delivery across production runs.

• Scalable Monitoring Architecture: Multiple monitors can be mounted on a single DIN rail to track separate lamps or zones in complex curing systems, providing granular control and diagnostics across extended UV sources.

• Standard Interface Compatibility: The 0–10 V output aligns with widely used data acquisition and control systems, minimizing integration complexity and leveraging existing plant automation infrastructure.

Solution‑Oriented Benefits for UV Curing and Manufacturing

The DIN Rail UV Intensity Monitor empowers engineers and process specialists to:

• Detect and Respond to UV Intensity Drift: Continuous relative intensity tracking highlights gradual source degradation or sudden output deviation before product quality is affected.

• Enhance Preventive Maintenance Planning: Programmable alarms and trend visibility allow maintenance teams to act before failures occur, reducing unplanned downtime and scrap rates.

• Integrate with Quality Systems: Analog output and relay logic support SPC, automated logging, and compliance documentation across curing workflows where consistent UV output is critical.

EIT 2.0 DIN Rail UV Intensity Monitor provides robust, solution‑oriented UV lamp monitoring that fits seamlessly into automated control architectures, enabling real‑time process oversight, early anomaly detection, and improved quality assurance in demanding industrial environments.
