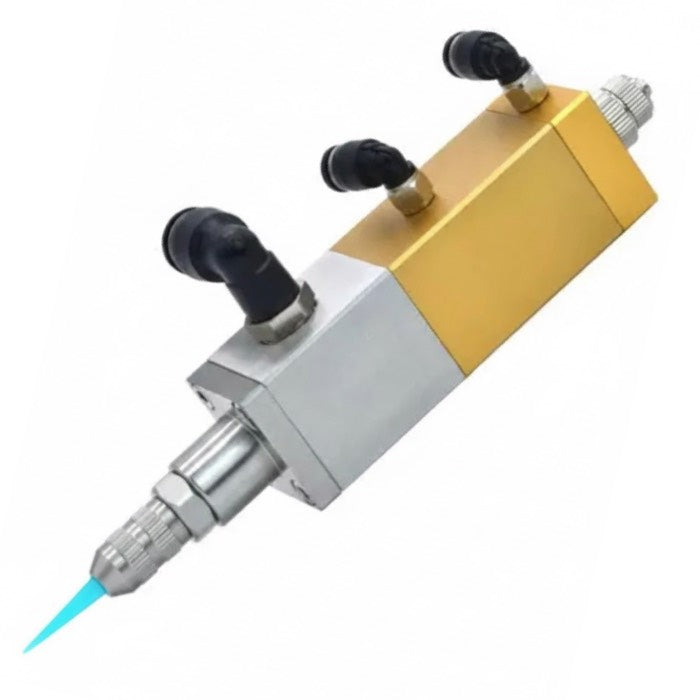

Cysco CG-579 is a heavy-duty high-flow back-suction dispensing valve designed for precision handling of high-viscosity materials. Constructed from 304 stainless steel and anodized aluminum alloy, this valve features a specialized vacuum back-suction mechanism that prevents "stringing" or dripping after the dispense cycle. With a robust 156mm body and a large G1/4 inlet, it is optimized for high-volume industrial applications such as greasing, potting, and sealing.
Specifications
| Model | CG-579 |
| Min. Discharge Volume | 0.01 ml |
| Operating Rate | < 300 cycles/min |
| Viscosity Range | 1 - 1,000,000 cps |
| Inlet Pressure | < 10 KG |
| Operating Air Pressure | 4 - 7 kgf/cm |
| Main Materials | 304 Stainless Steel + Anodized Aluminum Alloy |
| Total Length | 156 mm |
| Weight | 407g |
| Inlet Size | 1/4" npt(f) |
| Outlet ID | 2.5 mm |
Applications
The CG-579 is specifically suited for high-viscosity, single-component fluids that require clean cut-offs:
-
Lubricants: Butter, yellow oil, and industrial grease.
-
Sealants: Silicone, epoxy resins, and white latex.
-
Electronics: Solder paste and thermally conductive grease application.
-
Industrial: Large-scale potting and heavy adhesive bonding.
