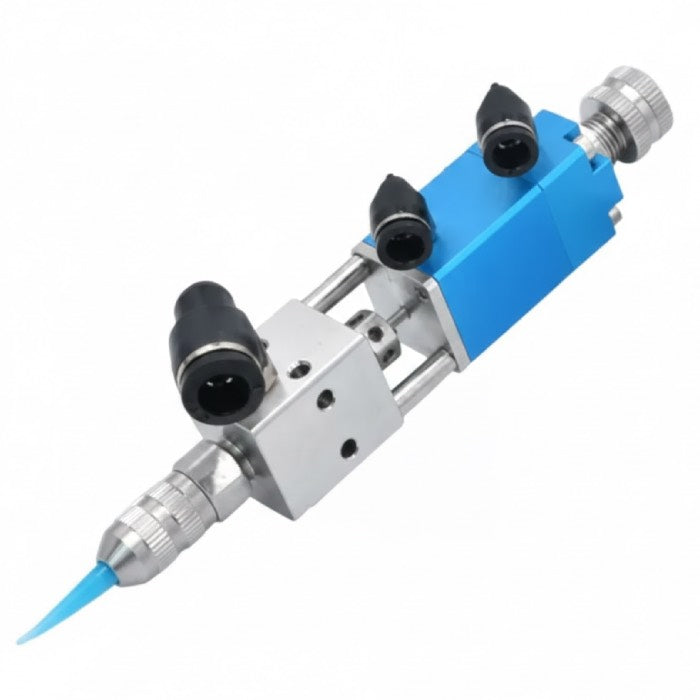

Cysco CG-590 is a precision dispensing valve designed for high-accuracy fluid control in industrial environments. Crafted from a durable combination of 304 stainless steel and anodized aluminum alloy, this valve is built to handle a wide range of fluid viscosities from 1 to 1,000,000 cps.
Featuring a sophisticated micro-adjustment nut, the CG-590 allows for ultra-fine control over discharge volumes as small as 0.01ml. Its high-speed operation capability of up to 300 cycles per minute makes it an ideal choice for automated assembly lines requiring consistent, repeatable performance with UV glues, inks, and adhesives.
Specification
| Model | CG-590 |
| Minimum Discharge | 0.01 ml |
| Operating Rate | < 300 cycles/min |
| Viscosity Range | 1 - 1,000,000 cps |
| Inlet Pressure | < 10 KG |
| Air Pressure | 4 - 7 kgf/cm |
| Main Material | 304 Stainless Steel + Anodized Aluminum Alloy |
| Dimensions | 134 mm (L) x 21 mm (W) |
| Weight | 196g |
| Inlet Size | G1/8" npt(f) |
| Outlet Inner Diameter | 2.5 mm |
Applications
The CG-590 is compatible with various single-component fluids:
-
Adhesives: UV glue, white latex, and all-purpose adhesives.
-
Industrial Fluids: High-viscosity inks and lubricants.
-
Chemicals: Alcohol and solvent-based fluids.
-
Electronics: Precision potting, micro-bead application, and PCB coating.
Key Feature: The valve includes a Micro-adjustment Nut at the rear, allowing operators to calibrate the stroke length for extreme precision in fluid delivery.
