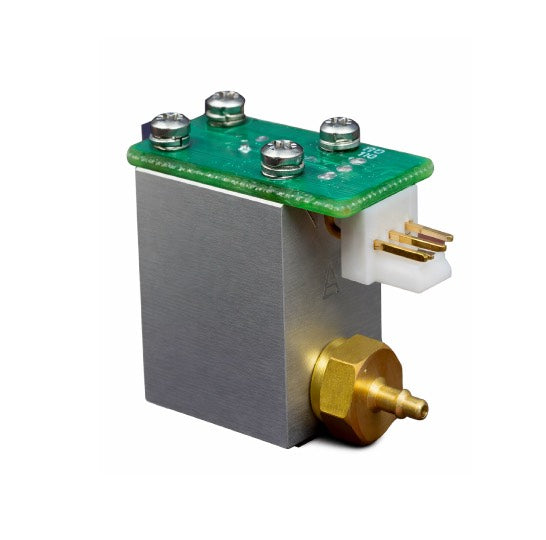

EMI Compact Sensor & EMI DIN Rail (UV Intensity Monitor)

EIT 2.0™ EMI Compact Sensor & EMI DIN Rail UV Intensity Monitor — Industrial‑Grade, EMI‑Hardened Continuous UV Monitoring Solution

The EIT 2.0 EMI Compact Sensor paired with the EMI DIN Rail UV Intensity Monitor is an engineered solution for continuous on‑line monitoring of ultraviolet intensity in industrial environments where electromagnetic interference (EMI) and process complexity compromise signal integrity. Built on the reliable EIT Compact Sensor architectureand enhanced with EMI‑hardening features, this system delivers stable, real‑time relative UV output data to automation and quality control systems—critical for maintaining consistent cure and process performance in demanding production lines.

Technical Performance & EMI‑Robust Design

• EMI‑Hardened Detection: The EMI Compact Sensor incorporates additional circuit protection to minimize electrical noise susceptibility from high‑frequency power supplies, microwave generators, and adjacent high‑voltage components. For optimal performance, the EMI sensor requires grounding and connection via a dedicated EMI cable to the EMI DIN Rail monitor.

• Continuous Relative Intensity Output: When integrated with the EMI DIN Rail UV Intensity Monitor, the system generates an industry‑standard analog signal (0–10 V or 4–20 mA) proportional to UV intensity, enabling ongoing feedback for process and control systems.

• Compact, Rugged Form Factor: Available in multiple housing shapes (CS‑1 with purge, CS‑2 height‑reduced, or “BTR” behind‑reflector form factors) to suit restricted mounting spaces and varied source configurations. EMI variants are calibrated across UVA, UVB, UVC, or UVV bands to match source spectral requirements.

• Sealed Optical Path: Like standard Compact Sensors, the EMI variant features a sealed optical system that resists contamination and extends service life under continuous UV exposure.

Industrial Integration & Control System Compatibility

• Signal Conditioning & Automation: The EMI DIN Rail UV Intensity Monitor conditions sensor output for integration with PLC, DCS, or HMI platforms, enabling real‑time process feedback, alarm logic, and data logging within automated control architectures.

• Alarm Threshold Logic: User‑defined threshold settings on the DIN Rail unit allow operators to configure alarm or relay outputs when UV intensity falls below process‑critical limits, supporting preventive maintenance and quality assurance activities.

• Scalable Multi‑Zone Monitoring: Multiple EMI sensor + DIN Rail pairs can be installed across extended lamp arrays or complex cure zones to provide comprehensive system visibility and redundancy.

Solution‑Oriented Benefits for High‑Performance UV Processes

• Reliable Monitoring in Electrically Noisy Environments: The EMI‑hardened design ensures signal fidelity where conventional sensors struggle, making it ideal for high‑speed manufacturing, plasma‑assisted UV sources, and equipment with significant electrical noise.

• Continuous Process Assurance: Real‑time intensity tracking helps detect gradual source degradation or abrupt anomalies before they compromise product cure or throughput.

• Seamless Automation Integration: Standard analog outputs feed directly into plant control systems for automated alerts, trend analysis, SPC recording, and closed‑loop process control.

• Flexible Deployment: Sensor housing options and spectral calibration choices ensure that the EMI system can be tailored to specific source types and installation constraints, from enclosed ovens to multi‑lamp banks.

EIT 2.0 EMI Compact Sensor & EMI DIN Rail UV Intensity Monitor deliver a robust, noise‑resilient online measurement platform that empowers industrial teams to maintain consistent UV performance, reduce waste, and integrate UV intensity data into automated quality and process control systems with confidence.
