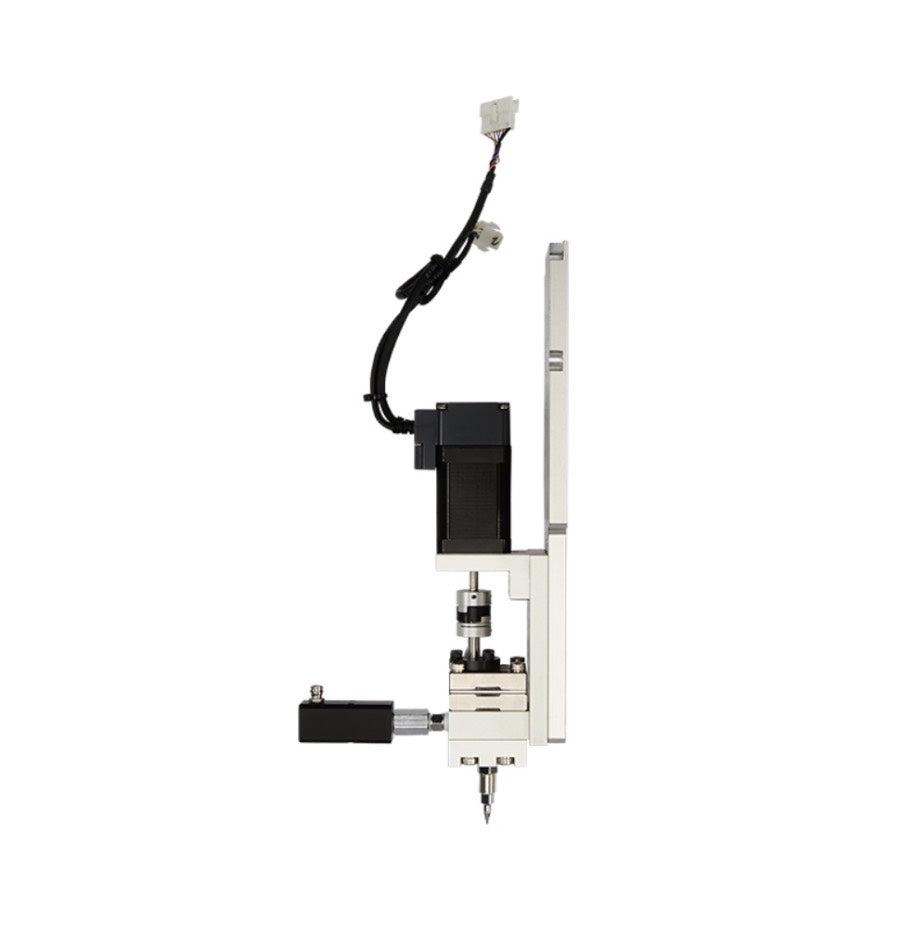

TAD-175G Gear Pump

The TAD-175G System is a premier precision dispensing solution featuring a high-performance Gear Pump integrated directly with the fluid supply unit. Driven by a high-torque SERVO motor, this system achieves an industry-leading 1% dispensing accuracy, making it the gold standard for applications where volumetric precision is critical.

By combining mechanical gear synchronization with digital servo control, the TAD-175G eliminates the fluctuations common in pneumatic systems, providing a perfectly smooth, pulsation-free material flow.

Engineering Excellence & Precision Benefits

• Servo-Controlled Volumetric Accuracy: The integrated SERVO motor provides closed-loop feedback for micro-level control, ensuring superior repeatability and a consistent 1% precision tolerance across high-volume production runs.

• Pulsation-Free Fluid Delivery: Unlike piston or diaphragm pumps, the Gear Pump mechanism delivers a continuous, linear discharge. This eliminates "surging," ensuring uniform bead geometry and stabilizing the dispensing process.

• High-Performance Gear Metering: Specifically designed for consistent fluid displacement, the gear assembly ensures that the exact volume of material is dispensed every time, regardless of fluctuations in supply pressure.

• Direct-Coupled Supply Architecture: By connecting the pump directly to the fluid supply unit, the system minimizes "dead space" and fluid travel distance, reducing the risk of material shear and streamlining maintenance.

• Industrial-Grade Reliability: Built with hardened internal components, the TAD-175G is designed for continuous operation in demanding environments such as electronics assembly, medical device manufacturing, and precision automotive bonding.



  Product specifications

  Model	TAD-175G
  Application	Silicone, Urethane, Epoxy, Polyester, Nylon, Polypropylene
  Material	High Speed Tool Steel
  Weight	1.92kg
  Rotation Speed	10~40 Rev/min
  Rotation Sense	Clockwise
  Inlet Pressure	Max. 50kg/cm²
  Outlet Pressure	Max. 380kg/cm²
  Viscosity of Polymer	1,000~500,000cps
