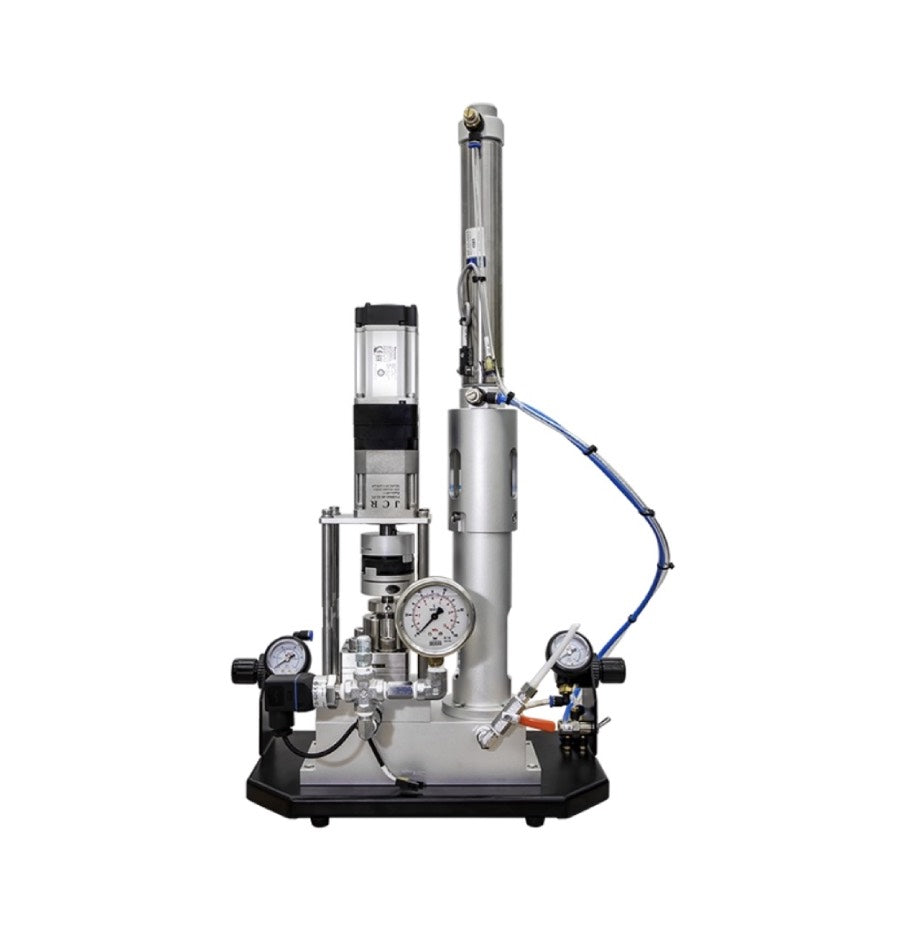

BRGP Gear Pump System

The BRGP Gear Pump System is a sophisticated dispensing solution engineered for high-viscosity applications utilizing standard 330ml cartridges. This system bridges the gap between high-pressure cartridge delivery and high-accuracy volumetric metering by feeding fluid directly from the cartridge into a precision Gear Pumpstage.

Driven by a high-torque SERVO motor, the BRGP-A transforms erratic pressurized flow into a controlled, linear output, ensuring that even the thickest materials are dispensed with absolute consistency and zero pulsation.

Engineering Excellence & Process Benefits

• Servo-Driven Volumetric Control: The integrated SERVO motor provides closed-loop precision, allowing for micro-adjustments to flow rates and ensuring superior repeatability across thousands of dispensing cycles.

• Pulsation-Free High-Viscosity Flow: By utilizing a gear-driven displacement mechanism, the system eliminates the "surging" effect common in pneumatic dispensers, resulting in a perfectly smooth and continuous material bead.

• Direct Cartridge-to-Pump Integration: Designed specifically for 330ml cartridges, the system minimizes the fluid path. This direct transfer reduces material shear and eliminates the air entrapment often introduced during manual material loading.

• Zero-Waste Material Yield: The synchronized pressure and gear stages ensure that the cartridge is evacuated efficiently, reducing expensive fluid loss and lowering the total cost of ownership.

• Optimized for Dense Materials: While standard gear pumps often struggle with supply, the BRGP-A is specifically optimized to pull and meter high-viscosity silicones, conductive epoxies, and thermal pastes without losing accuracy.



  Product specifications

  Model	BRGP
  cc/Rev	Customizing
  Inlet Pressure	Max.2MPa(Max.20kgf/cm²)
  Outlet Pressure	Max.5MPa(Max.50kgf/cm²)
  Viscosity	10,000~400,000cps
  Precision	±2%
  Power Source	AC220C,50/60Hz
  Material	Alloy Tool Steel, Stainless Steel, Aluminium
