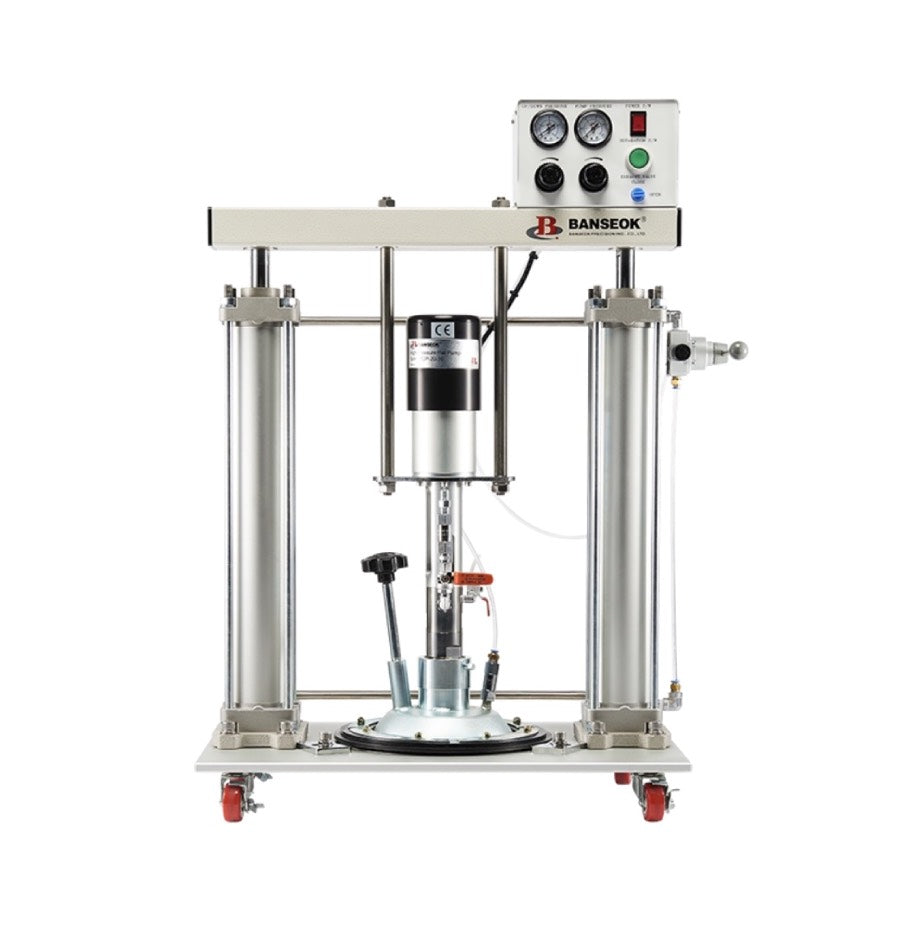

PCP-20-10 High-Viscosity Fluid Pump

The PCP-20-10 is an advanced high-viscosity pressure pump engineered for direct-from-source fluid management. Optimized for 20L (5-gallon) pail containers, this system eliminates the need for manual material transfers, significantly reducing the risk of contamination and material waste in high-volume production environments.

By integrating a specialized follower-plate design and high-torque pressure delivery, the PCP-20-10 ensures that even the most stubborn industrial sealants and adhesives are dispensed with absolute consistency.

Engineering Excellence & Bulk Handling Benefits

• Direct Pail Integration: Designed to operate seamlessly with standard 20L containers. This "direct-to-process" approach minimizes prep time and eliminates the material loss typically associated with decanting fluids into smaller cartridges.

• Airtight Bubble-Free Delivery: The system maintains a constant seal against the material surface, preventing air entrapment and ensuring that high-viscosity fluids remain pure and bubble-free from the bottom of the pail to the dispensing tip.

• Proprietary Precision Valving: Features an internally developed simultaneous application valve. This allows for high-accuracy dosing and repeatable bead profiles, directly enhancing final product quality and reducing reject rates.

• High-Pressure Durability: Built with industrial-grade wear-resistant components, the PCP-20-10 is specifically rated for heavy-duty sealing, bonding, and molding processes that demand continuous high-pressure output.

• Space-Efficient Footprint: Despite its bulk-handling capabilities, the unit maintains a compact and lightweight profile, allowing for easy integration into existing production cells where floor space is at a premium.



  Product specifications

  Model	PCP-20-10
  Pump Sending Ratio	10:1, 20:1(For high pressure)
  Applying Viscosity	10,000~400,000cps
  Air Pressure	1~7bar
  Air Consumption	80ml/min(max
  Applying Container	-
  Power	AC220V 50/60Hz(110V:Option)
