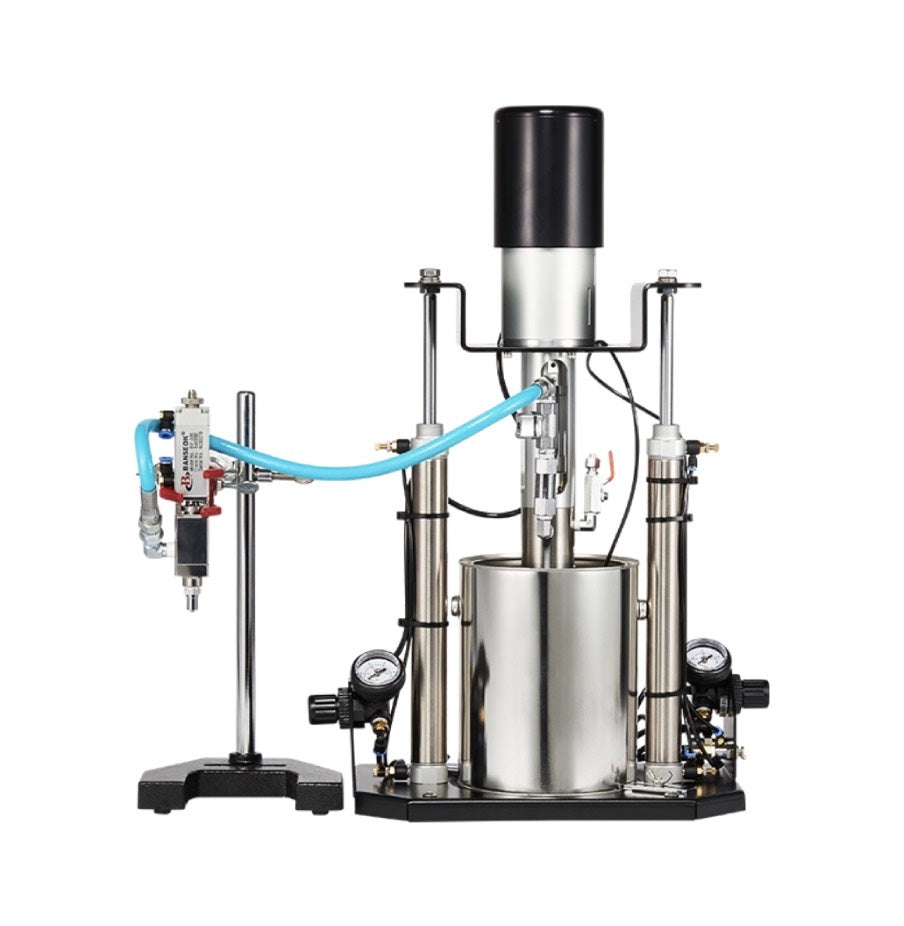

PCP-⍺135 High-Viscosity Pressure Pump

The PCP-⍺135 is an advanced high-viscosity pressure pump engineered for precision dispensing directly from small-scale industrial containers (1kg, 3kg, and 5kg). This specialized system is designed for high-value materials where every gram counts, eliminating the need for manual transfers and significantly reducing material waste.

By integrating a specialized pressure-plate system that maintains constant contact with the fluid surface, the PCP-⍺135 ensures a stable, air-free discharge of adhesives and sealants directly from their original packaging.

Engineering Excellence & Operational Benefits

• Direct-to-Process Integration: Compatible with 1kg to 5kg containers, this pump removes the risk of contamination and material loss associated with decanting fluids into secondary reservoirs.

• Variable Pressure Intensification: Featuring customizable pressure ratios, the PCP-⍺135 provides the mechanical advantage necessary to dispense high-viscosity materials with high repeatability and consistent flow rates.

• Zero-Waste Material Yield: The system is engineered to evacuate nearly 100% of the container’s contents, ensuring cost-effective operation and minimal residue for disposal.

• Airtight, Bubble-Free Delivery: Prevents ambient air entrapment and material oxidation, making it the ideal choice for sensitive electronic potting and automotive bonding applications.

• Ergonomic & Compact Footprint: Its lightweight, space-saving design allows for rapid deployment in laboratory settings, manual workbenches, or compact automated production cells.



  Product specifications

  Model	PCP-a135
  Pump Sending Ratio	10:1, 20:1 (For high pressure)
  Applying Viscosity	10,000~400,000cps
  Air Pressure	1~7bar
  Air Consumption	80ml/min(max)
  Applying Container	1kg, 3kg, 5kg
  Power	AC220V 50/60Hz (110V:Option)



  Drawing
