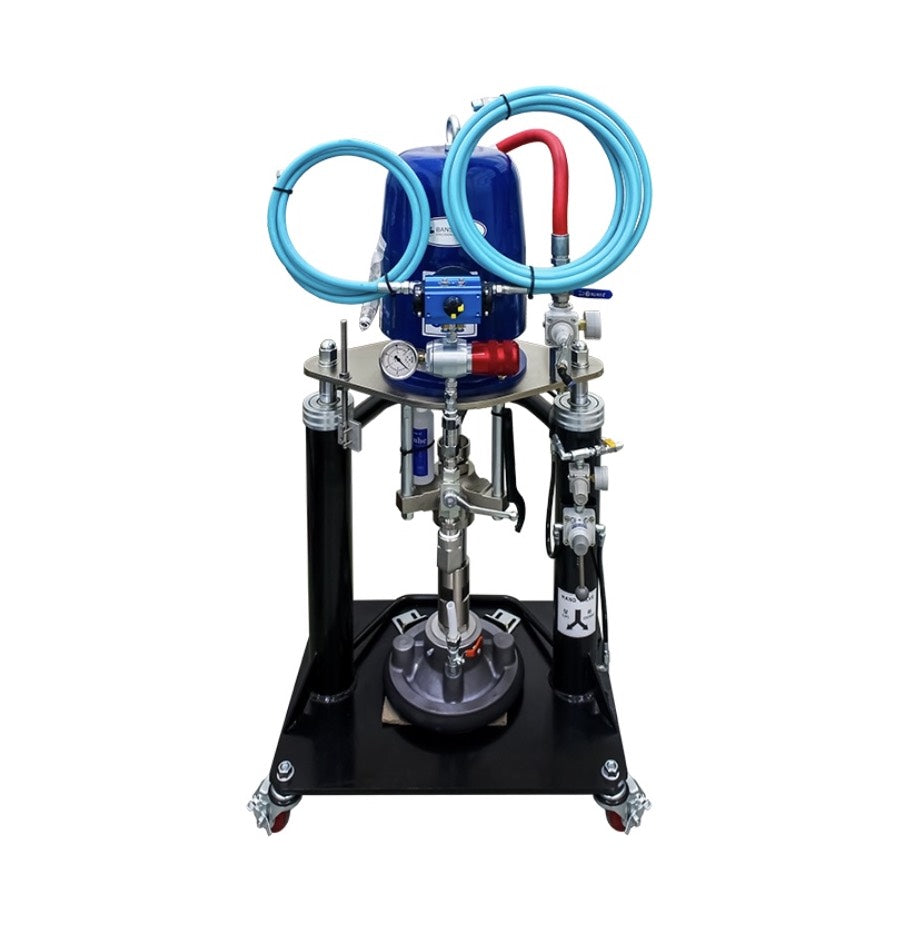

PCP-20-55 High Viscosity Pump

The PCP-20-55 is a robust, industrial-grade liquid transfer pump engineered for the most demanding high-viscosity applications. Specifically designed to extract dense materials directly from 20kg cans, this system utilizes a powerful pneumatic drive with a 55:1 pressure ratio.

This high-gain ratio allows the PCP-20-55 to overcome the internal resistance of ultra-thick fluids, ensuring a steady, high-pressure flow that standard transfer pumps cannot achieve.

Engineering Excellence & High-Pressure Benefits

• Extreme Viscosity Range: Engineered for versatility, this pump effectively processes materials ranging from 50,000 cps to 1,000,000 cps, making it the premier choice for heavy-duty pastes, sealants, and greases.

• High-Output 55:1 Ratio: The pneumatic intensification system delivers exceptional force, ensuring smooth and consistent material flow even when dealing with non-leveling, high-density fluids.

• Direct-from-Can Efficiency: By operating directly from original 20kg containers, the PCP-20-55 eliminates the messy and wasteful material transfer process, preserving fluid purity and reducing labor costs.

• Pneumatic Precision Control: The regulated air-pressure system provides a stable discharge rate, minimizing material surging and ensuring precision in bulk transfer or high-volume dispensing.

• Industrial-Grade Durability: Built to withstand the rigors of the automotive, construction, and heavy manufacturing sectors, the PCP-20-55 features wear-resistant components designed for long-term reliability in high-cycle environments.



  Product specifications

  Model	PCP-20-55
  Pump Sending Ratio	55:1
  Delivery	10L/Min
  Air Pressure	3~7bar
  Cycle Per Liter	263 Cycle/L
  Max. Working Pressure	385bar
  Max. Pump Speed	60Cycle/Min
  Air Motor Dia	161mm
  Stroke	90mm



  Drawing
