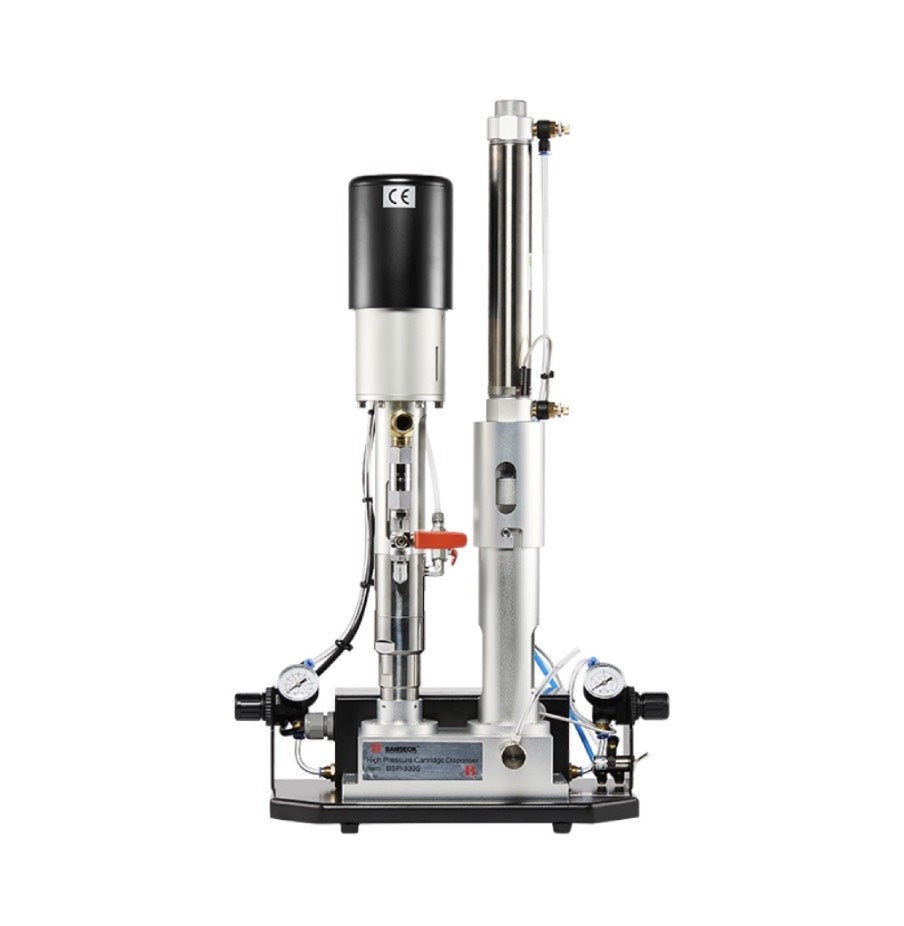

BSP-330S Single Cartridge Pressure Pump

The BSP-330S is a high-performance, single-cartridge pressure pump designed specifically for high-viscosity materials ranging from 10,000 to 600,000 cps, this specialized system leverages consistent pump pressure to provide a seamless, air-free dispensing workflow.

By eliminating ambient air exposure, the BSP-330S prevents material degradation and ensures a bubble-free output, making it an essential component for rigorous industrial applications where precision is non-negotiable.

Key Technical Features & Industrial Benefits

• Bubble-Free Fluid Delivery: Advanced pressure stabilization prevents air entrapment and material contamination, ensuring consistent bead geometry and clean deposits.

• Extreme Viscosity Range: Engineered to efficiently process heavy-duty fluids up to 600,000 cps, maintaining flow integrity where standard pumps fail.

• Space-Saving Architecture: The compact, lightweight footprint allows for easy integration into existing production lines or robotic workcells without requiring extensive floor space.

• Optimized Throughput: Designed for seamless integration with precision dispensing valves, the BSP-330S is ideal for high-speed, multi-point applications that demand increased cycles per minute.

• Maximum Material Yield: By utilizing nearly 100% of the cartridge content, the system minimizes expensive fluid waste and reduces the frequency of material changeovers, lowering the total cost of ownership.



  Product specifications

  Model	BSP-330S
  Air pressure	Min. 2kgf/cm²
  Air consumption	80ml/min(max)
  Pump sending ratio	10:1, 20:1(For high pressure)
  Max. dispensing pressure	50kgf/cm2
  Min. dispensing pressure	0.005cc/shot
  Applied viscosity	10,000~600,000cps
  Applied container	300ml,310ml,330ml cartridge
  Power	AC220V 50/60Hz (110V:Option)



  Drawing
