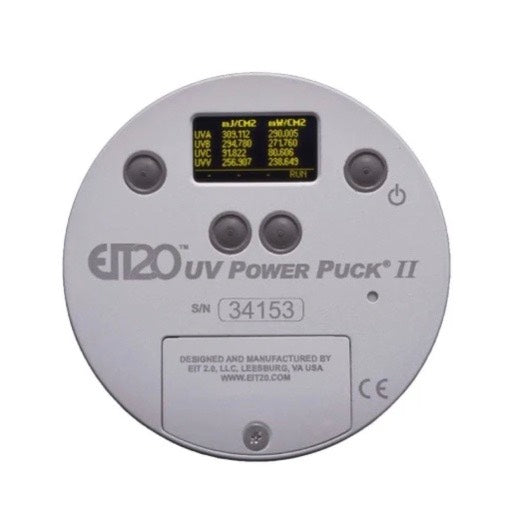

Power Puck® II (4 UV Bands with Display)

EIT 2.0™ Power Puck® II — Four-Band Industrial UV Radiometer for Multi-Spectral Dose & Intensity Measurement

The EIT 2.0 Power Puck® II (SAL-B1015 Rev 01.00) is a flagship, multi-band UV radiometer engineered to provide simultaneous, quantitative measurement of four UV wavelengths in a single pass. Designed for complex industrial curing environments, the Power Puck II offers operators and engineers a comprehensive spectral profile, ensuring objective, repeatable data for process validation, lamp aging diagnostics, and advanced UV system calibration.

Technical Performance & Measurement Authority

• Four-Band Simultaneous Monitoring: Captures and displays data across four distinct spectral bandwidths—UVA (320–390 nm), UVB (280–320 nm), UVC (250–260 nm), and UVV (395–445 nm)—providing a complete overview of the UV source's output in one run.

• High-Resolution Dose & Intensity: Simultaneously tracks peak irradiance (W/cm²) and total energy density (J/cm²) for all four bands. Users can toggle between individual band data or a cumulative "all-in-one" screen for rapid engineering interpretation.

• Dynamic Operating Ranges: Optimized to handle high-power curing environments up to 10 W/cm² (Standard Range), with available Mid and Low Power configurations to ensure measurement fidelity across focused lamps, non-focused sources, or distant exposures.

• Advanced Sampling & Smoothing: Features adjustable effective sample rates—Smooth ON (25 Hz), Smooth PROFILER (128 Hz), and Smooth OFF (2048 Hz)—allowing for precise peak capture and temporal profiling across both high-speed and slow-cure production cycles.

Rugged, Field-Ready Engineering

• Streamlined Industrial Profile: Measuring approximately 117 mm in diameter and 12.7 mm thick, the Power Puck II is designed to travel through most curing conveyors and chambers without interfering with the production process.

• Heavy-Duty Construction: Built with a robust aluminum and stainless-steel housing to withstand harsh industrial heat and UV exposure. The high-contrast, easy-to-read display ensures data is visible even in low-light factory settings.

• Battery-Powered Portability: Powered by two user-replaceable AAA alkaline cells, providing approximately 20 hours of operation for extended on-floor testing without the need for external power sources.

• USB Data Integration: An integrated USB interface enables seamless data transfer to a PC, allowing for professional logging, long-term trending, and detailed process documentation via UV PowerView® software.

Solution-Oriented Benefits for UV Process Control

The Power Puck II is the industry standard for teams requiring total spectral control and repeatable accuracy in UV curing, offering:

• Comprehensive Spectral Analysis: By monitoring four bands at once, users can identify specific lamp degradation (e.g., loss of UVC) that a single-band meter might miss.

• Baseline Establishment & Maintenance: Establish "Gold Standard" profiles for new lamps and reflectors to maintain tight quality tolerances for complex inks, coatings, and adhesives.

• Reference Mode for Comparisons: Utilize the onboard Reference Mode to store a baseline run and perform direct side-by-side comparisons to detect subtle shifts in UV system performance.

• Enhanced Process Repeatability: Provides the measurable data necessary to comply with rigorous quality management systems and ISO standards, ensuring consistent cure results across multiple production lines.

By delivering multi-spectral precision, rugged durability, and sophisticated data analysis, the Power Puck II radiometer empowers engineers to optimize UV curing performance and maintain absolute control over their industrial processes.
