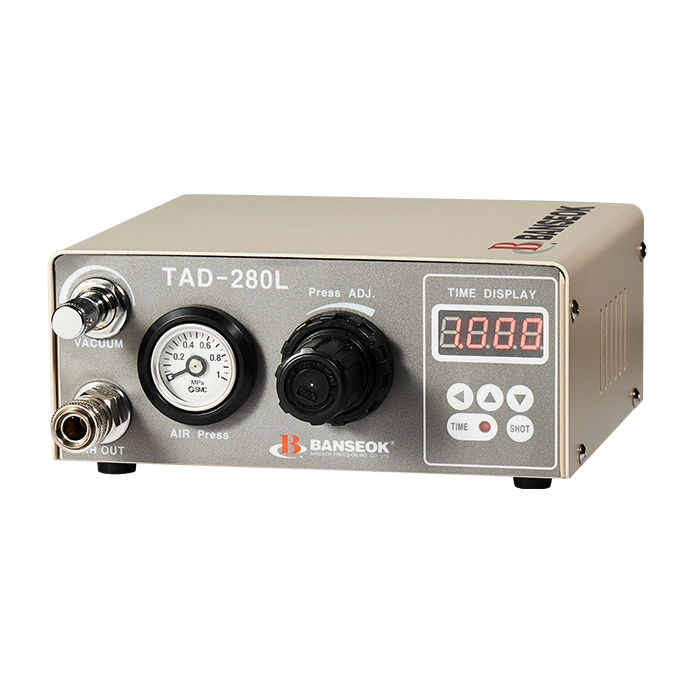

The TAD-280L is purpose-built for single-acting valve applications, delivering exceptional control and accuracy. Its innovative design significantly reduces tolerance in fluid quantification, shrinking it from ±20% to an industry-leading ±3%. This enhanced precision translates to:
- Reduced Material Waste: Minimize costly material overruns and ensure consistent product quality.
- Improved Product Quality: Achieve precise and repeatable fluid dispensing for consistent and reliable end products.
-
Increased Production Efficiency: Optimize your dispensing processes for faster throughput and reduced downtime.
Product specifications:

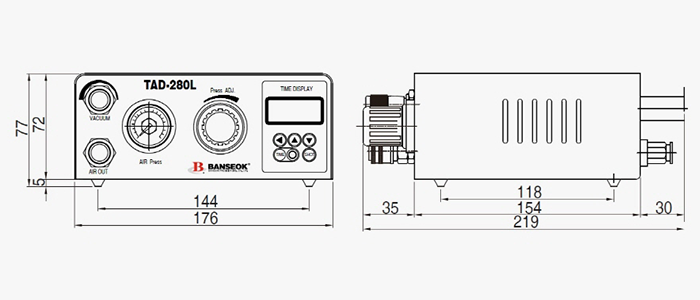

Model TAD-280L Control Method Electronic / Pneumatic System Dispensing pressure 0~10kg/cm2 (S: Standard) 0~4kg/cm2 (L: Option) 0~2kg/cm2 (P: Option) Time Range 0.01~99.99 sec Pattern Channel 1~10 Channels Memory Function 500 memories Display Section LCD digital display Input / Output Signal Open connector, DC 24V Out Signal Open Collector, DC 24V Power Source AC220V 50/60Hz (AC100V 50/60Hz:Option) External Dimension & weight 176(W) x 154(D) x 72(H)mm, 2.4kg
Key Features and Benefits:
- Enhanced Precision: Achieve ±3% quantification accuracy, drastically reducing material waste and improving product consistency.
- High-Speed Response: 50% faster dispense signal response time for quicker start and stop functionality, boosting productivity.
- Precise Time Control: Adjust discharge time in 0.001-second increments for ultra-fine control and optimized dispensing.
- Noise Reduction: Integrated silencer reduces operational noise by 50%, creating a more comfortable work environment.
- Compact Design: Easily integrate the space-saving TAD-280L into your existing dispensing setups.
