EIT 2.0™ Quartz Rod — Extended Reach UV Sensor for On‑Line Monitoring in Restricted and High‑Temperature Environments

The EIT 2.0 Quartz Rod is a precision UV intensity extension sensor engineered to extend the reach of EIT’s On‑Line Monitoring Compact Sensor into tight, high‑temperature, or otherwise inaccessible process zones where traditional installation isn’t feasible. Designed as a high‑quality quartz optical extension, this solution allows UV engineers to continuously track relative UV output with minimal signal distortion while keeping the sensitive Compact Sensor electronics positioned in a safer, lower‑heat environment.

Technical Specifications & Functional Design

  • High‑Grade Quartz Construction: The rod is fabricated from optically pure quartz with a diffuse outer surface, enabling reliable transmission of UV radiation from source to sensor under challenging conditions.

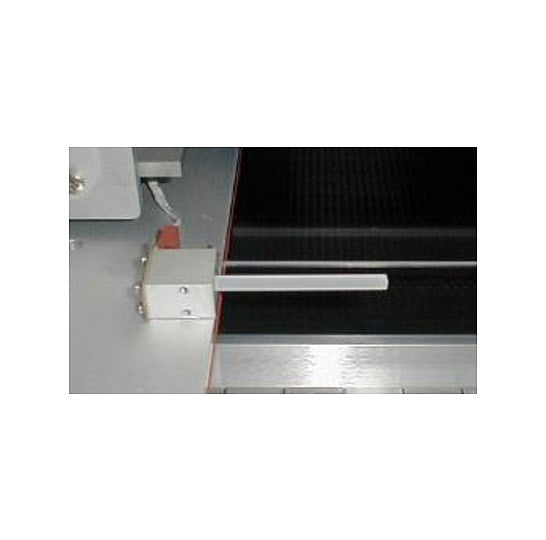

  • Compact Form Factor: At four inches (10 cm) in length and approximately 0.2” (0.5 cm) diameter, the Quartz Rod is sized to fit into constrained spaces while minimizing thermal and mechanical loading within the curing zone.

  • Seamless Sensor Integration: Designed to interface directly with the EIT CS‑1 Compact Sensor housing using a secure set‑screw mount, maintaining optical alignment and robust mechanical stability.

  • Diffuse Surface for Uniform Capture: The outer surface scattering characteristics ensure a representative sampling of the UV field over a broad acceptance angle, reducing alignment sensitivity in challenging installations.

Engineered for Continuous UV Monitoring

When paired with an EIT 2.0 Compact Sensor and DIN Rail Signal Conditioning Unit, the Quartz Rod enables continuous relative UV intensity tracking — an essential capability for high‑speed production, multi‑lamp arrays, enclosed curing chambers, or elevated sources where direct sensor placement is impractical.

Solution‑Oriented Benefits

  • Access in Restricted Zones: Provides a reliable optical extension to extract UV intensity signals from confined, high‑temperature, or obstruction‑filled areas without exposing sensitive electronics.

  • Thermal Isolation: Keeps the Compact Sensor outside extreme heat zones, extending service life and measurement stability in processes such as web curing ovens, reflector tunnels, or dense lamp arrays.

  • Optimized for On‑Line Control Systems: Works seamlessly with EIT’s Real‑Time Monitoring architecture, feeding UV intensity data into PLC or automation environments for alarm generation, trend logging, and process control.

  • Broad Application Suitability: Compatible with both broadband (mercury) and LED spectral response sensors, matching industry needs from high‑speed coatings to precision electronics curing.

EIT 2.0 Quartz Rod extends OES‑grade UV monitoring into environments previously beyond reach — delivering continuous, solution‑oriented UV insight where space, heat, and access constraints would otherwise limit visibility into critical process conditions.
