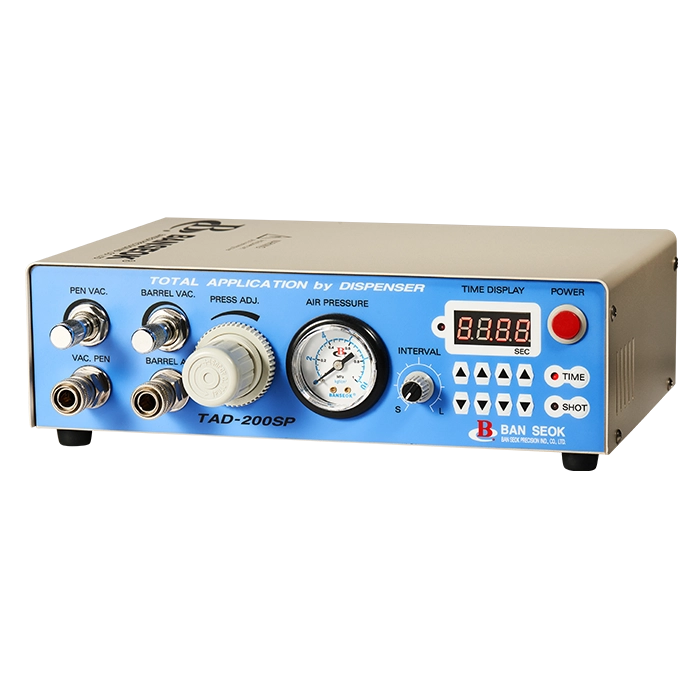

The TAD-200SP is a specialized controller that integrates fluid dispensing and vacuum pick-up functionality into a single device. This innovative design allows you to transport small components with the vacuum pick-up pen while simultaneously dispensing adhesives or other materials, significantly improving efficiency in assembly and rework operations.
Precision and Versatility for Delicate Components
The TAD-200SP is ideal for applications requiring high accuracy, such as assembling lenses, glass, and other small parts. Its adjustable vacuum control ensures gentle handling of delicate components, while the versatile vacuum pad options (∅2 to ∅32) accommodate a wide range of component sizes.
Product specifications:
| Model | TAD-200SP |
| Control Method | 0.01~99.99 sec |
| Time Range | 0.01~99.99 sec |
| Interval Timer | 0.01~99.99 sec |
| Vacuum Pressure | 0~ -350mmHg |
| Out Signal | Open connector, DC 24V 20mmsec(Relay |
| Power Source | AC220V 50/60Hz (AC100V 50/60Hz:Option) |
| Power Consumption | 32W |

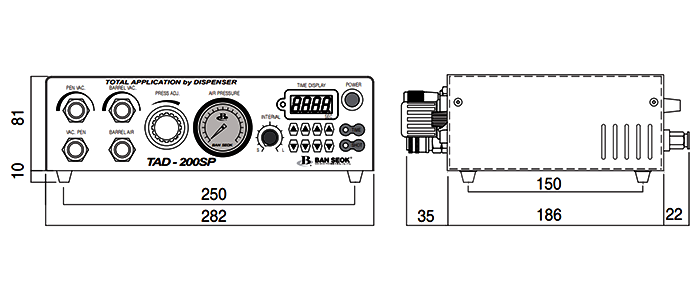

| External Dimension & weight | 282(W) x 186(D) x 81(H)mm, 3.0kg |
Key Features and Benefits:
- Dual Functionality: Combines dispensing and vacuum pick-up in one device, streamlining assembly and repair.
- Adjustable Vacuum Control: Precise control of vacuum strength for various component sizes and weights.
- Versatile Vacuum Pad Options: Wide selection of pad sizes (∅2 to ∅32) for diverse component dimensions.
- Ideal for Precision Assembly: Perfect for high-accuracy applications like lens, glass, and small part assembly.
- User-Friendly Operation: Equipped with the MN-5 pick-up pen for easy handling and reworking.
