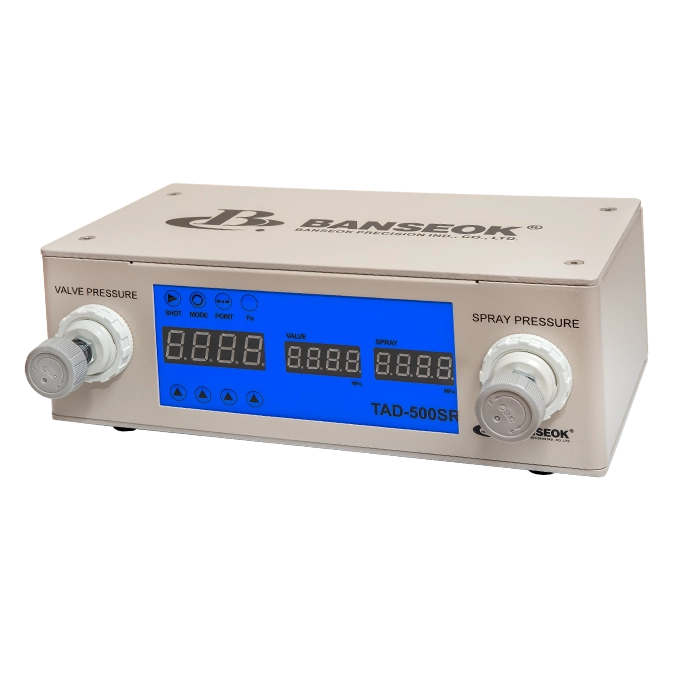

The TAD-500SR is a specialized controller engineered for conformal coating applications. Its precise pressure regulator allows for incredibly fine adjustments in 0.001MPa increments, ensuring accurate and consistent control over both the air blow and fluid dispensing. This level of precision is crucial for achieving uniform coating thickness and coverage, especially on complex or delicate components.
User-Friendly Design for Enhanced Productivity
The TAD-500SR features a digital display and a simple, intuitive user interface. This makes it easy for operators to set and fine-tune parameters, minimizing setup time and ensuring consistent, high-quality results.
Product specifications:
| Model | TAD-500SR |
| Control Method | Electronic / Pneumatic System |
| Time Range | 5bar/20ms |
| Interval Timer | 0.01~99.99 sec |
| Out Signal | DC24V, 2.5A |
| Power Source | 220V, 1A, 50/60Hz |

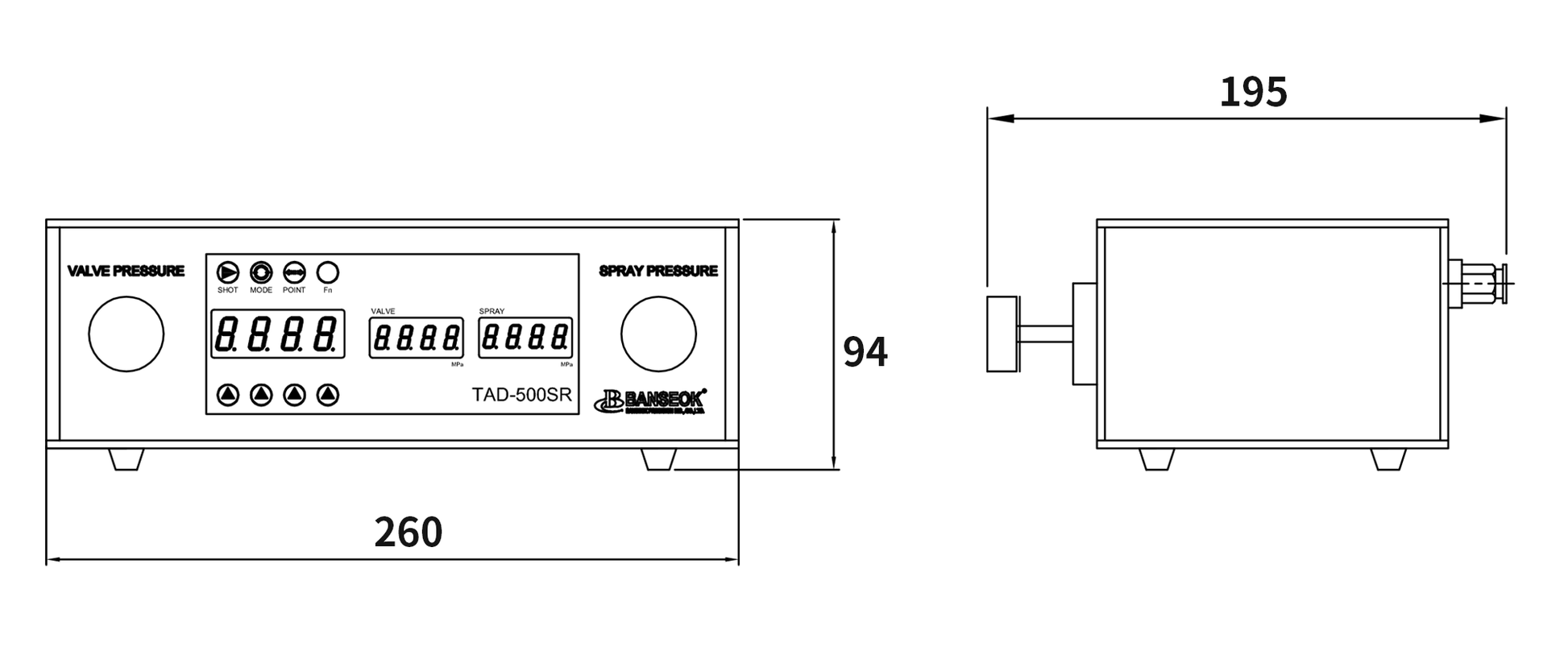

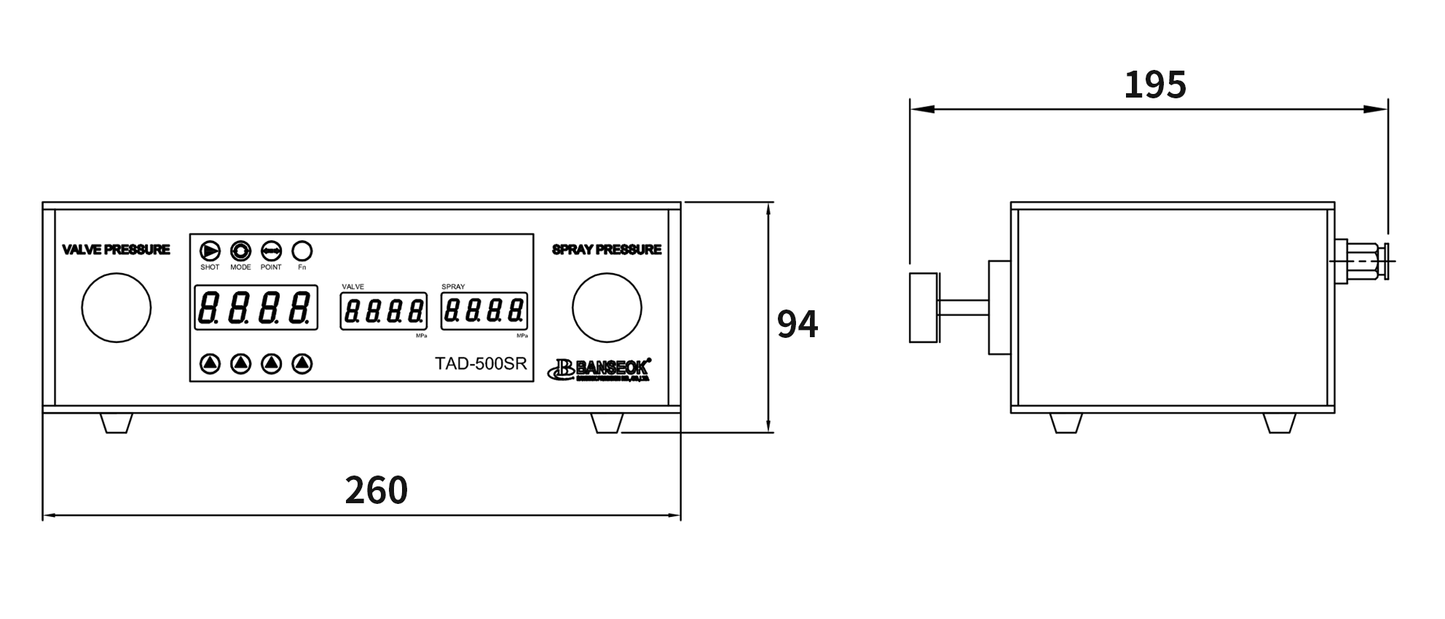

| External Dimension & weight | 260(W) x 135(D) x 95(H)mm, 3.0kg |
Key Features and Benefits:
- Precise Pressure Regulation: Offers 0.001MPa adjustments for both air and fluid, providing unparalleled control over the coating process.
- User-Friendly Interface: Intuitive digital display and simple interface for easy setup, adjustment, and operation.
- Optimized for Conformal Coating: Specifically designed for controlling conformal coating valves, ensuring accuracy and efficiency.
- Enhanced Dispensing Control: Consistent and uniform fluid dispensing for improved coating quality and reduced rework.
