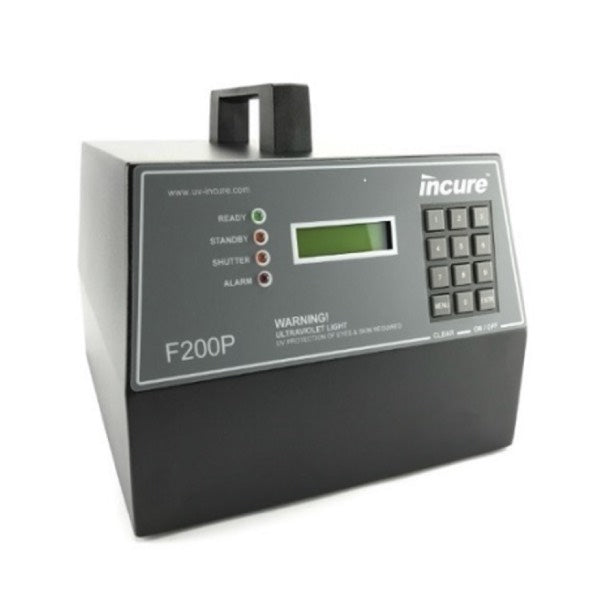

Incure F200P Programmable UV Flood Curing Lamp – 600W Metal Halide

Incure Programmable UV Flood Curing Lamp — Industrial-Grade UV Energy Delivery for Controlled Photocuring

The Incure UV Curing Flood Lamp F200P is engineered as a precision ultraviolet flood curing system designed to deliver repeatable, high-intensity UVA energy for consistent photopolymerization of adhesives, coatings, and photoactive materials in industrial and laboratory production environments. By integrating all critical components — lamp, driver, reflector, shutter, and control — into a compact, self-contained head, these systems eliminate the need for external power boxes or complex cabling while delivering tunable, process-centric performance.

Technical Performance & Engineered Control

• High-Intensity UVA Output: The F200P model employs a 600 W metal halide lamp and a precision parabolic reflector to deliver evenly distributed UVA irradiance of ~200 mW/cm² (320–390 nm) across a minimum 8 × 6 inch curing field, focusing energy where photochemistry matters most.

• Programmable Exposure Management: Built-in digital keypad and LCD display provide intuitive control of exposure timing, lamp intensity, and process sequencing — enabling exact replication of cure cycles and minimizing operator variability.

• Closed-Loop Process Integrity: Integrated retractable shade shutter ensures precise start/stop control of UV exposure, improving throughput repeatability and protecting operators from stray radiation.

• Robust Electrical and Thermal Design: Universal AC input (90–132/180–265 VAC) with ±1 % lamp power regulation and forced-air cooling provides stable performance across varied production environments. Typical warm-up is <2 minutes, with optimized cooling times governing safe restart sequences.

Engineered for Industrial Photocuring Applications

• Consistent Polymer Cross-Linking: Ideal for high-volume curing of UV-activated adhesives, conformal coatings, and surface finishes where uniform UVA dose and controlled delivery are required for optimal bond strength and surface properties.

• Process Repeatability: Digital exposure control and shutter logic enable repeatable cycle implementation for SP-controlled manufacturing lines and quality-management systems.

• Compact, Modular Deployment: With all components integrated into a single lamp head (~11″ × 10″ × 9″, ~15 lb), the system mounts easily on production fixtures, tooling frames, or conveyors without complex infrastructure.

Solution-Oriented Industrial Benefits

• Enhanced Throughput: By focusing reliable UVA energy precisely where needed, cure times shorten while maintaining consistent material properties across production runs.

• Reduced Operator Variability: Programmable sequencing with feedback indicators eliminates guesswork and supports repeatable production steps.

• Scalable Integration: Compatible with automated production lines and fixtures where controlled UV dose and timing are essential for reproducible outcomes.

• Field-Ready Durability: Designed for industrial temperature and humidity ranges, forced-air cooling ensures sustained operation under continuous duty cycles.

Incure UV Flood Curing Lamps provide engineered UVA delivery with precise control, robust performance, and solution-centric functionality — ensuring predictable curing, reduced cycle variation, and quality-driven outcomes for industrial photopolymer applications.
