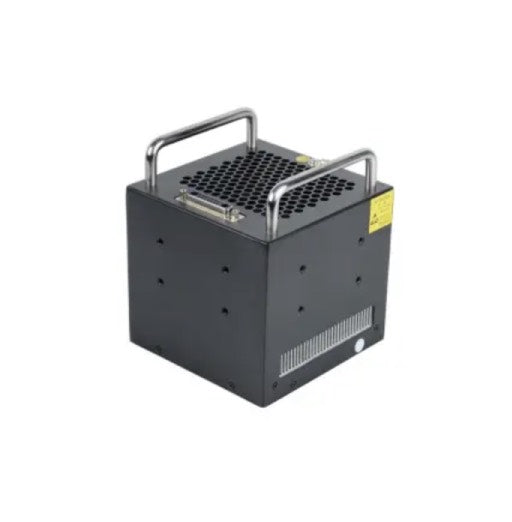

Incure L-Series™ L1044 UV LED Flood Lamp (Compact, High-Intensity Area Curing)
Incure L-Series™ L1044 UV LED Flood Lamp (Compact, High-Intensity Area Curing)
Couldn't load pickup availability
The Incure L-Series™ L1044 UV LED Flood Lamp is a robust, industrial-grade solution designed for high-performance UV curing in space-conscious environments. Featuring a compact 4" x 4" irradiation area, the L1044 provides a highly concentrated and uniform light field. This ensures consistent bonding results across various substrates, making it the premier choice for precise encapsulation and component bonding.
Smart Automation: Fully compatible with PLC, RS232, and Foot-Switch signal inputs, allowing for seamless communication with automated production lines.
Thermal Management: Features advanced air-cooling with forced air and louvers to maintain peak performance during continuous operation.
Global Readiness: Includes an auto-ranging power input (100 - 240V 50/60Hz) for easy deployment in any manufacturing facility worldwide.
| Model | L1044 |
| Irradiation (Curing) Area | 4"x4" |
| Number of LEDs | 144 |
| Intensity @2" Dist. (365nm) mW/cm² | 1,800 - 2,300 |
| Intensity @2" Dist. (385/405nm) mW/cm² | 2,000 - 2,500 |
Leadtime
Leadtime
2 to 4 weeks ARO
