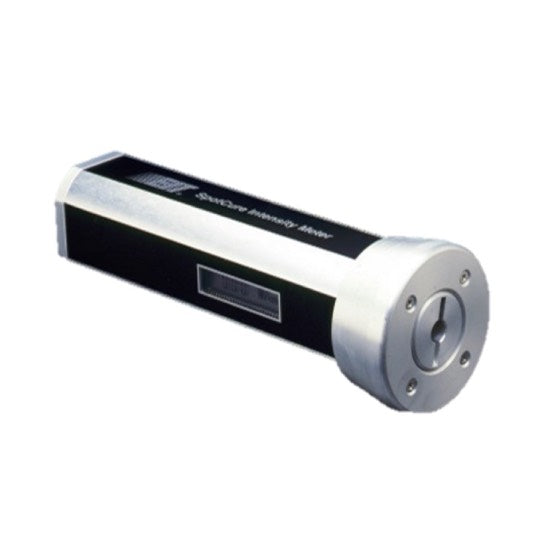

EIT 2.0™ SpotCure® UV Intensity Meter — Precision Hand-Held Measurement for UV Spot Curing Control
The EIT 2.0 SpotCure® UV Intensity Meter (SAL-B1005 Rev 1.3) is an industrial-grade, compact UV irradiance measurement instrument engineered to quantify peak UV output in spot curing systems with unmatched simplicity and robustness. Purpose-built for inline process verification, quality assurance, and preventive maintenance, SpotCure provides operators and engineers with immediate feedback on UV curing performance where traditional tools cannot deliver reliable, repeatable data.
Engineered for High-Performance UV Process Control
-
Spectral Optimization: Designed for UVA band response (320–390 nm), ensuring accurate peak irradiance measurement of common UV spot curing sources.
-
Dual Dynamic Range:
-
Standard Range: 0–19.99 W/cm²
-
Extended Range: 0–99.9 W/cm²
This broad measurement window supports both routine production and high-intensity curing heads.
-
-
Resolution & Accuracy: Fine resolution to 10 mW/cm² (standard) and 100 mW/cm² (extended) with typical accuracy of ±5 % (±10 % max) plus ±0.3 % full-scale, delivering quantifiable confidence in UV intensity measurement.
Purpose-Built for On-Demand, Portable UV Diagnostics
-
Self-Contained, Battery-Powered: Long-life lithium battery stick supports over 100,000 readings (>12,500 hours), eliminating power cables that hinder field use.
-
Ergonomic, Field-Ready Design: The hand-held form factor (~6.40″ L × 1.74″ Ø) integrates a precision optical head and three light guide adaptors (5 mm, 7 mm, 10 mm) for flexible coupling to diverse spot curing wands.
-
Intuitive Operation: One-touch “START” triggering captures instantaneous peak irradiance, holds the reading on a 3½-digit LCD for up to 3 minutes, and resets instantly for continuous monitoring.
-
Rugged, Process-Ready: Engineered with durable aluminum, polyester, and quartz materials to withstand harsh UV environments typical in manufacturing and service.
Industrial Application & Process Benefits
SpotCure is the industry reference tool for monitoring and optimizing spot curing UV systems across electronics assembly, coatings, adhesives, and medical device fabrication. It enables:
-
Real-Time performance verification of curing heads and light guides
-
Early detection of lamp or optical degradation before product defects occur
-
Process repeatability and documentation aligned with quality systems
-
Operator-friendly validation for field service, commissioning, and production audits
By combining precision irradiance measurement, rugged portability, and intuitive operation, the SpotCure UV Intensity Meter delivers actionable data that empowers engineers and technicians to maintain optimal UV curing performance throughout the production lifecycle.
