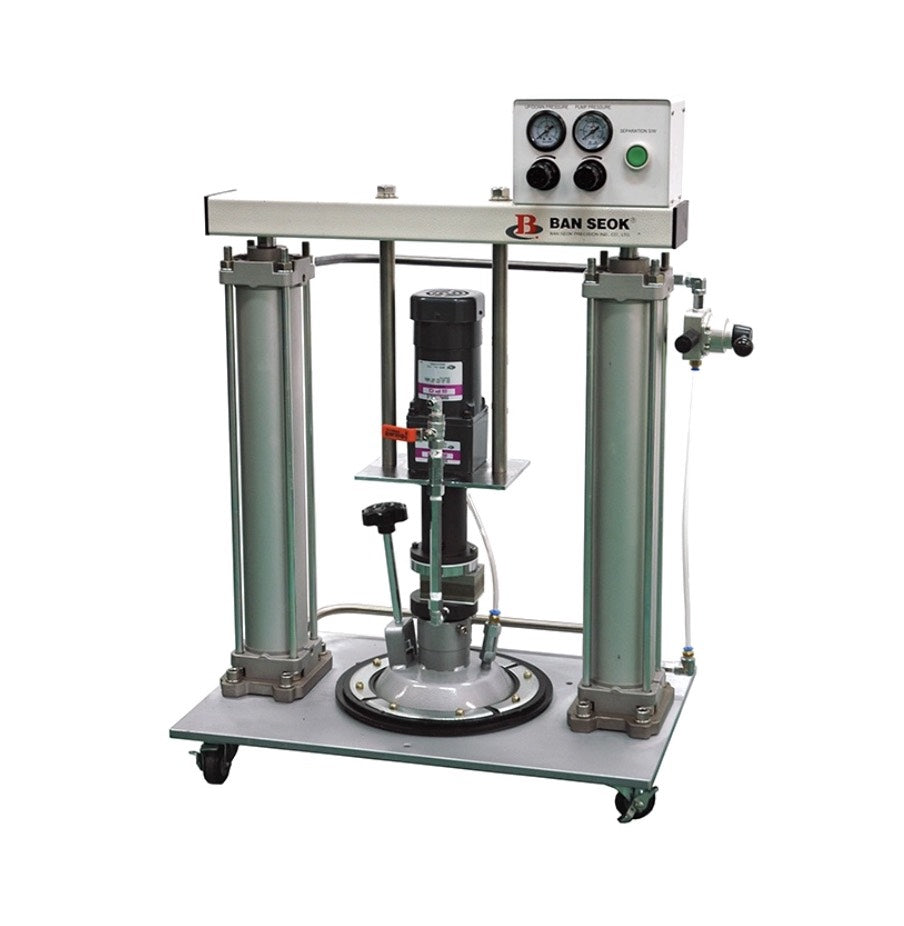

PGP-20-10 High Viscosity Liquid Transfer Can Gear Pump

The PGP-20-10 is a high-precision, fixed-displacement dispensing system engineered for large-scale industrial applications. Designed to install directly into standard 5-gallon (18.9L) pails, this system provides a high-accuracy solution for discharging dense, high-viscosity materials without the common pitfalls of air entrapment or material bypass.

By combining a robust pail-entry architecture with a pulsation-free displacement mechanism, the PGP-20-10 ensures that thick sealants and adhesives are delivered in precise, repeatable volumes for every cycle.

Engineering Excellence & Industrial Benefits

• Direct-from-Pail Volumetric Precision: The system draws material directly from the 5-gallon container,delivering a fixed-amount discharge that eliminates the variability found in time-pressure systems.

• Airtight, Bubble-Free Flow: Specialized follower-plate technology maintains a constant seal against the fluid surface, ensuring that even the most viscous materials remain pure and free of air bubbles from start to finish.

• Pulsation-Free Discharge: Engineered for smooth, linear fluid delivery, the PGP-20-10 removes the "surging" effect typical of standard pneumatic pumps, resulting in superior bead consistency and dot accuracy.

• Proprietary Simultaneous Application Valve: Equipped with an internally developed precision valve, the system allows for synchronized, multi-point dispensing that directly boosts production throughput and assembly quality.

• Compact High-Output Design: Despite its heavy-duty capabilities, the unit features a lightweight and space-efficient profile, making it easy to integrate into existing manual stations or automated robotic cells.



  Product specifications

  Model	PGP-20-10
  cc/Rev	Customizing
  Inlet Pressure	Max.2MPa(Max.20kgf/cm²)
  Outlet Pressure	Max.5MPa(Max.50kgf/cm²)
  Viscosity	10,000~400,000cps
  Precision	±2%
  Power Source	AC220C,50/60Hz
  Material	Alloy Tool Steel, Stainless Steel, Aluminium



  Drawing
