Precision Connectors & Contacts in Asia: Improve Reliability with Photo Etching

In today’s advanced electronics—from medical devices to automotive systems—the smallest components often have the biggest impact. Connectors and contacts are critical to signal integrity, power delivery, and overall product reliability.

If your current components are causing performance issues, inconsistencies, or design limitations, the problem may not be your design—it may be your manufacturing method.

Photo etching offers a smarter, more precise solution.

Facing Challenges with Connector Performance?

Many engineering teams in Asia encounter the same problems with traditional stamping or machining:

  • Burrs causing short circuits or poor connectivity
  • Inconsistent spring performance over repeated cycles
  • Design limitations due to tooling constraints
  • High costs when modifying or refining designs

In high-reliability applications, these issues can lead to product failure, costly rework, or delayed launches.

A Better Alternative: Photo Etching for Connectors & Contacts

Photo etching (photochemical machining) is a non-contact, high-precision process that removes metal using controlled chemical reactions—eliminating the limitations of mechanical fabrication.

It enables you to produce complex, high-performance connectors with unmatched consistency and flexibility.

What You Gain with Photo Etching

✔ Burr-Free, Stress-Free Components

Ensure clean electrical performance with:

  • Smooth, burr-free edges
  • No deformation or internal stress
  • Consistent contact reliability

This is critical for preventing signal loss and mechanical failure in sensitive electronic systems.

✔ Superior Performance for High-Cycle Applications

Photo etching preserves the natural properties of the material, allowing:

  • Reliable spring performance over thousands of cycles
  • Consistent contact force
  • Improved durability in demanding environments

✔ Design Freedom Without Cost Penalties

Create intricate connector geometries without increasing cost:

  • Fine features and micro “fingers”
  • Tight tolerances for compact
  • No expensive hard tooling

This is ideal for miniaturized electronics and next-generation designs.

✔ Half-Etching for Easy Forming

Enable complex 3D connector designs with built-in fold lines:

  • Precise bending locations
  • Faster assembly
  • Improved alignment and repeatability

✔ Fast Prototyping, Faster Time-to-Market

Stay competitive in Asia’s fast-moving electronics sector:

  • Rapid turnaround from CAD to prototype
  • Easy design iterations
  • Seamless transition to volume production

Materials Optimized for Electrical Contacts

Photo etching supports a wide range of high-performance materials used in connectors, including:

  • Beryllium Copper – Excellent for high-fatigue spring contacts
  • Phosphor Bronze – Strong conductivity and corrosion resistance
  • Stainless Steel – Ideal for structural strength and durability
  • Nickel Silver – Common for shielding and precision

Applications Across Asia’s Key Industries

Photo-etched connectors and contacts are widely used in:

  • Medical devices and precision instruments
  • Automotive electronics and EV systems
  • Aerospace and defense applications
  • Consumer electronics and wearables

As devices become smaller and more complex, precision manufacturing becomes a competitive advantage.

Why Engineering Teams Choose Photo Etching

Companies are switching to photo etching because it delivers:

  • Higher reliability and consistency
  • Greater design flexibility
  • Reduced development time
  • Lower total cost for complex components

It’s not just about manufacturing—it’s about improving your product performance from the ground up.

Let’s Optimize Your Connector Design

If you are:

  • Experiencing connector reliability issues
  • Designing miniaturized or high-precision components
  • Looking to accelerate development and reduce costs

Now is the time to explore photo etching as your solution.

BlazeAsia works with engineering teams across Asia to support precision connector and contact solutions using photo etching, from early-stage design through scalable production.

Talk to Our Us Today

Ready to improve your connector performance?

Reach out to:

  • Review your current design
  • Identify performance improvements
  • Explore rapid prototyping options

Get in touch today and take the next step toward more reliable, high-performance connectors.



Chemical Etching vs. Conventional Processes

Discover why engineers choose photo chemical etching over CNC machining, laser
cutting, and stamping for intricate metal parts.

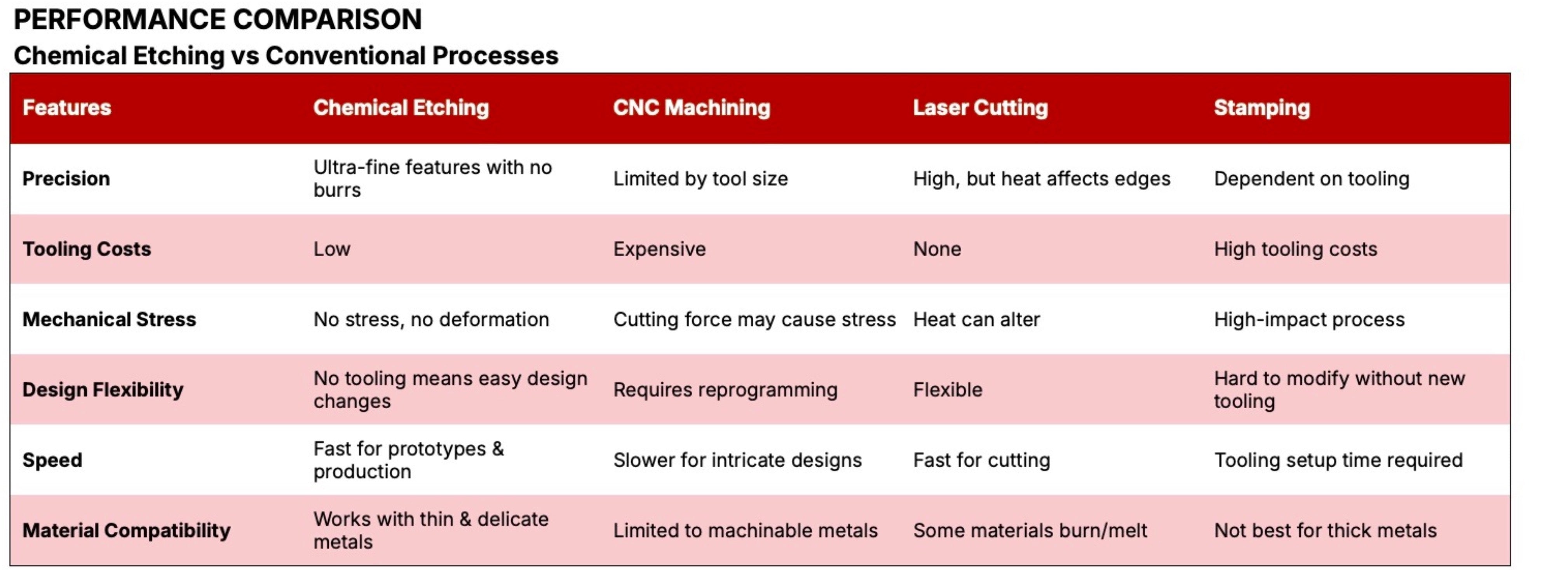

Feature BLAZE Chemical Etching CNC Machining Laser Cutting Stamping
Precision Ultra-fine features with no burrs Limited by tool size High, but heat affects edges Dependent on tooling
Tooling Costs Low (Digital "Soft" Tooling) Expensive None High hard tooling costs
Mechanical Stress No stress, no part deformation Cutting force may cause stress Heat can alter properties High-impact process
Design Flexibility Easy design changes (no hard tooling) Requires reprogramming Flexible Hard to modify
Speed Fast for prototypes & production Slower for intricate designs Fast for cutting Tooling setup time required
Material Compatibility Ideal for thin, brittle & delicate metals Limited to machinable metals Some materials burn/melt Not best for thick metals

Advanced Design Inclusions

BLAZE offers advanced profile controls and custom design integrations that go beyond standard through-etching.

Half-Etching

Ideal for fold lines (simplifying hand-forming), integrating logos, barcodes, text, and intricate surface patterns without piercing the material entirely.

Component Tagging

Keep parts retained in the sheet for surface coating or plating operations using custom tags (protruding or recessed half-metal thickness tags), or receive them supplied loose.

Micro Features

Standard minimum feature size down to 0.075mm (or 100% of material thickness, whichever is greater). Enables extraordinary complexity.

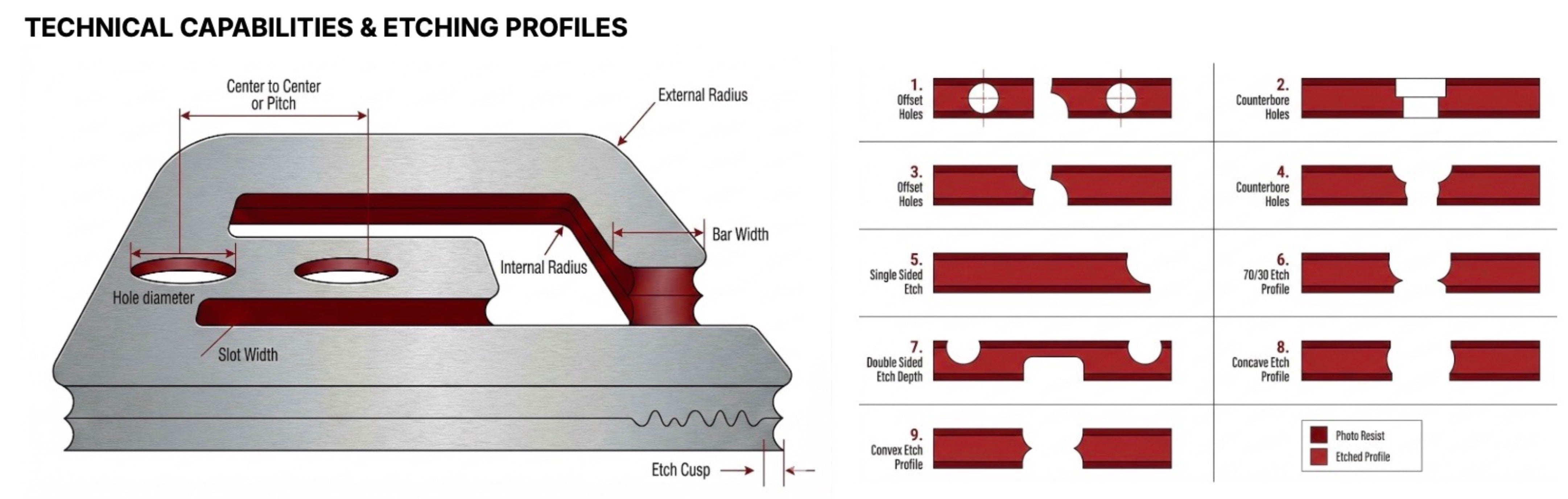

SUPPORTED ETCH PROFILES
Single Sided Etch
Double Sided Etch
70/30 Offset Etch
Convex Profile
Concave Profile
Conical Apertures

Material Tolerance & Specifications

Compatibility and Precision Standards

The BLAZE Standard Tolerance Rule
  • • Materials 0.010mm – 0.250mm thick: ±0.025mm standard tolerance.
  • • Materials above 0.250mm thick: ±10% of metal thickness.

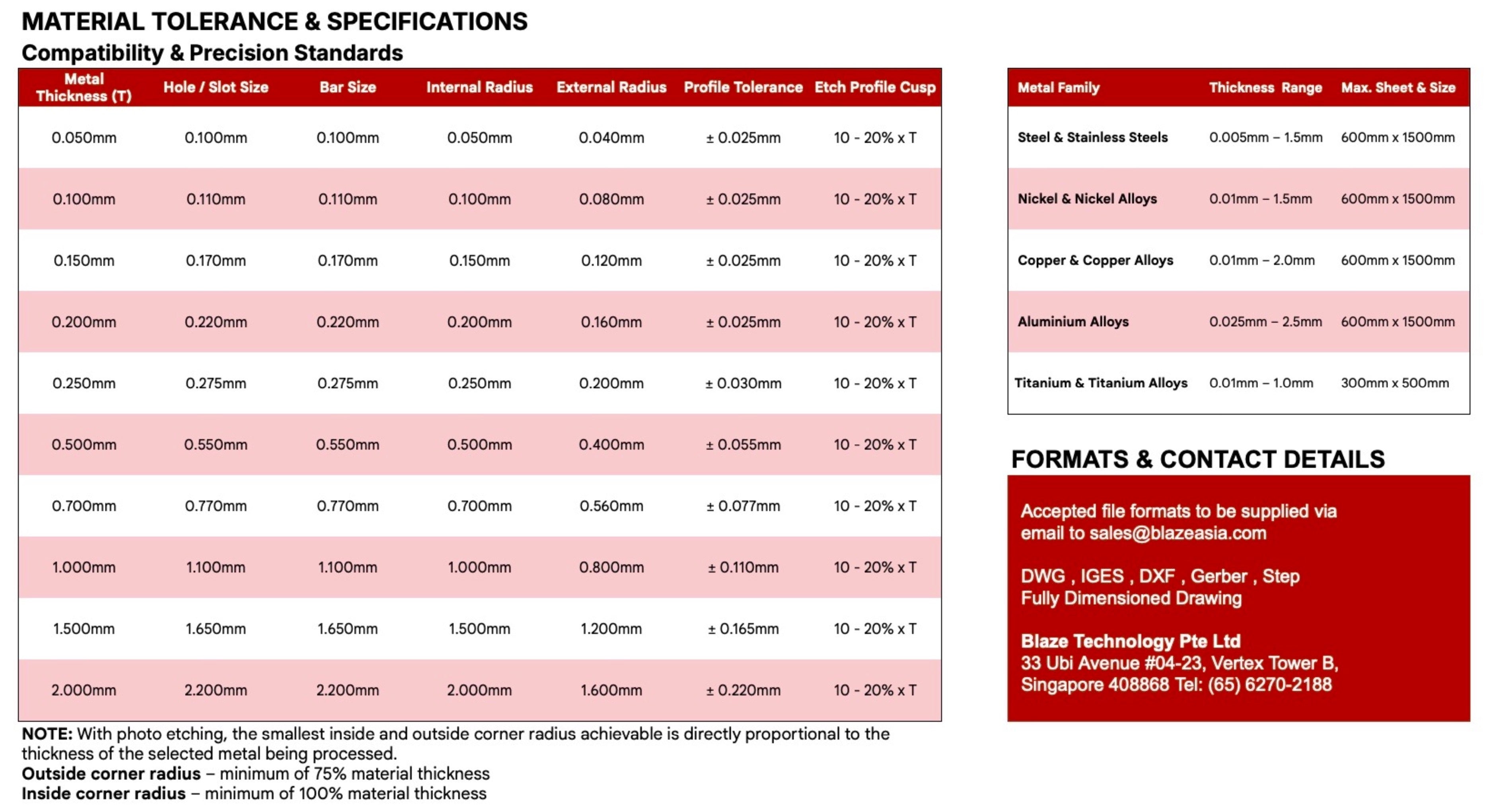

Metal Thickness (T) Hole/Slot Size Bar Size Internal Radius External Radius Profile Tolerance Etch Profile Cusp
0.050mm 0.100mm 0.100mm 0.050mm 0.040mm ±0.025mm 10-20% x T
0.100mm 0.110mm 0.110mm 0.100mm 0.080mm ±0.025mm 10-20% x T
0.150mm 0.170mm 0.170mm 0.150mm 0.120mm ±0.025mm 10-20% x T
0.200mm 0.220mm 0.220mm 0.200mm 0.160mm ±0.025mm 10-20% x T
0.250mm 0.275mm 0.275mm 0.250mm 0.200mm ±0.030mm 10-20% x T
0.500mm 0.550mm 0.550mm 0.500mm 0.400mm ±0.055mm 10-20% x T
0.700mm 0.770mm 0.770mm 0.700mm 0.560mm ±0.077mm 10-20% x T
1.000mm 1.100mm 1.100mm 1.000mm 0.800mm ±0.110mm 10-20% x T
1.500mm 1.650mm 1.650mm 1.500mm 1.200mm ±0.165mm 10-20% x T
2.000mm 2.200mm 2.200mm 2.000mm 1.600mm ±0.220mm 10-20% x T
Corner Radii Note

With photo etching, the smallest inside and outside corner radius achievable is directly proportional to the thickness of the selected metal being processed.

  • • Outside corner radius: Minimum of 75% material thickness.
  • • Inside corner radius: Minimum of 100% material thickness.

Suitable Materials & Sheet Sizes

Metal Family Thickness Range Max Sheet Size
Steel & Stainless Steels 0.005mm - 1.500mm 600mm x 1500mm
Nickel & Nickel Alloys 0.010mm - 1.500mm 600mm x 1500mm
Copper & Copper Alloys 0.010mm - 2.000mm 600mm x 1500mm
Aluminium Alloys 0.025mm - 2.500mm 600mm x 1500mm
Titanium & Titanium Alloys 0.010mm - 1.000mm 300mm x 500mm

Exotic Metals & Custom Supply

Beyond our standard metal families, BLAZE is fully equipped to etch special and exotic metals upon request. We are also happy to work with customer-supplied material to meet your exact project specifications.
